Product Description

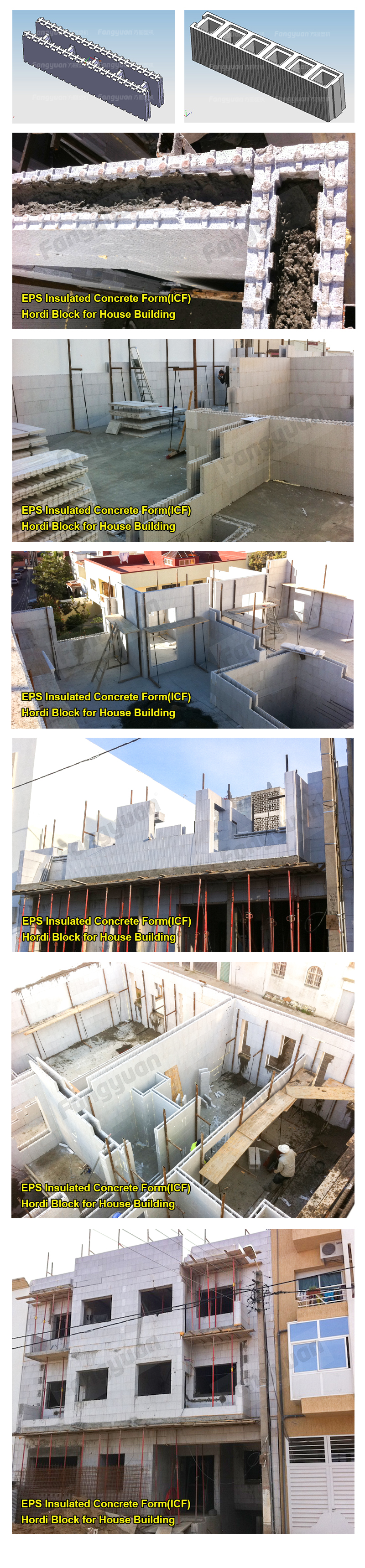

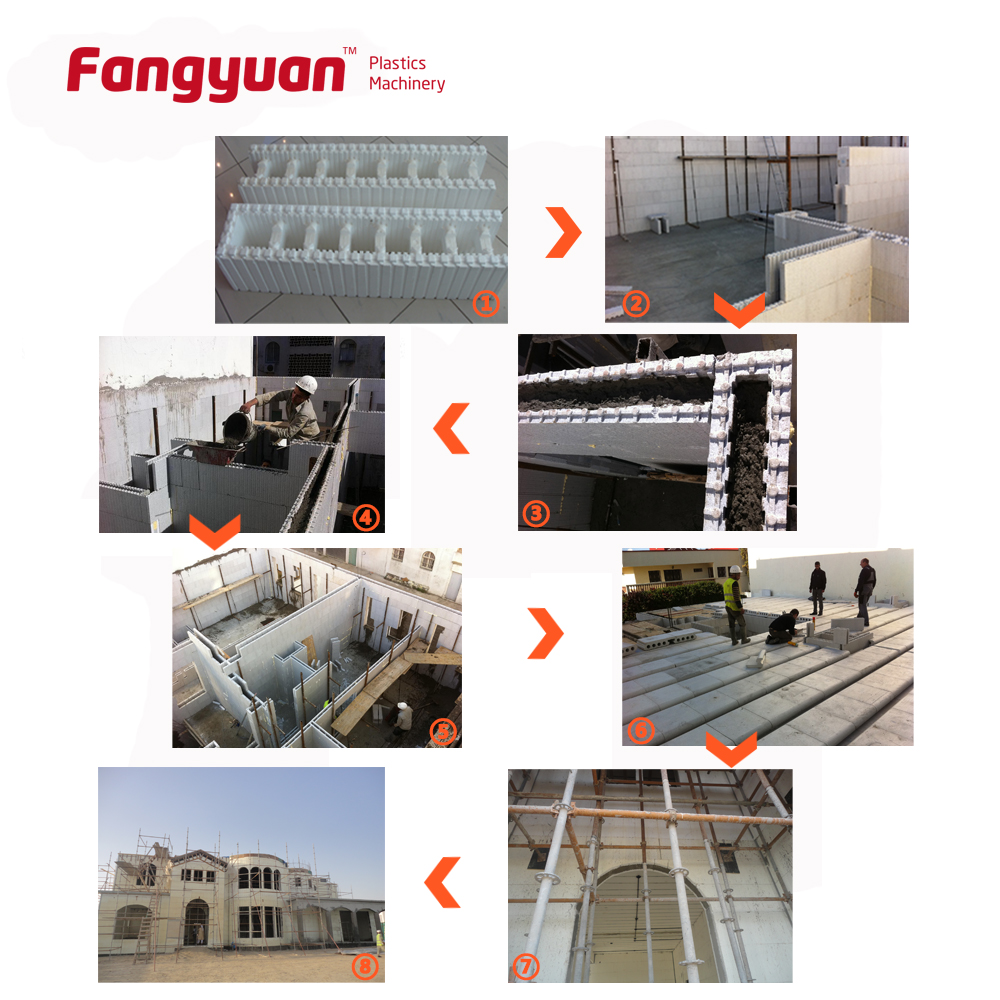

Successful Projects of EPS ICF Blocks Machine

Successful Projects of EPS ICF blocks machine

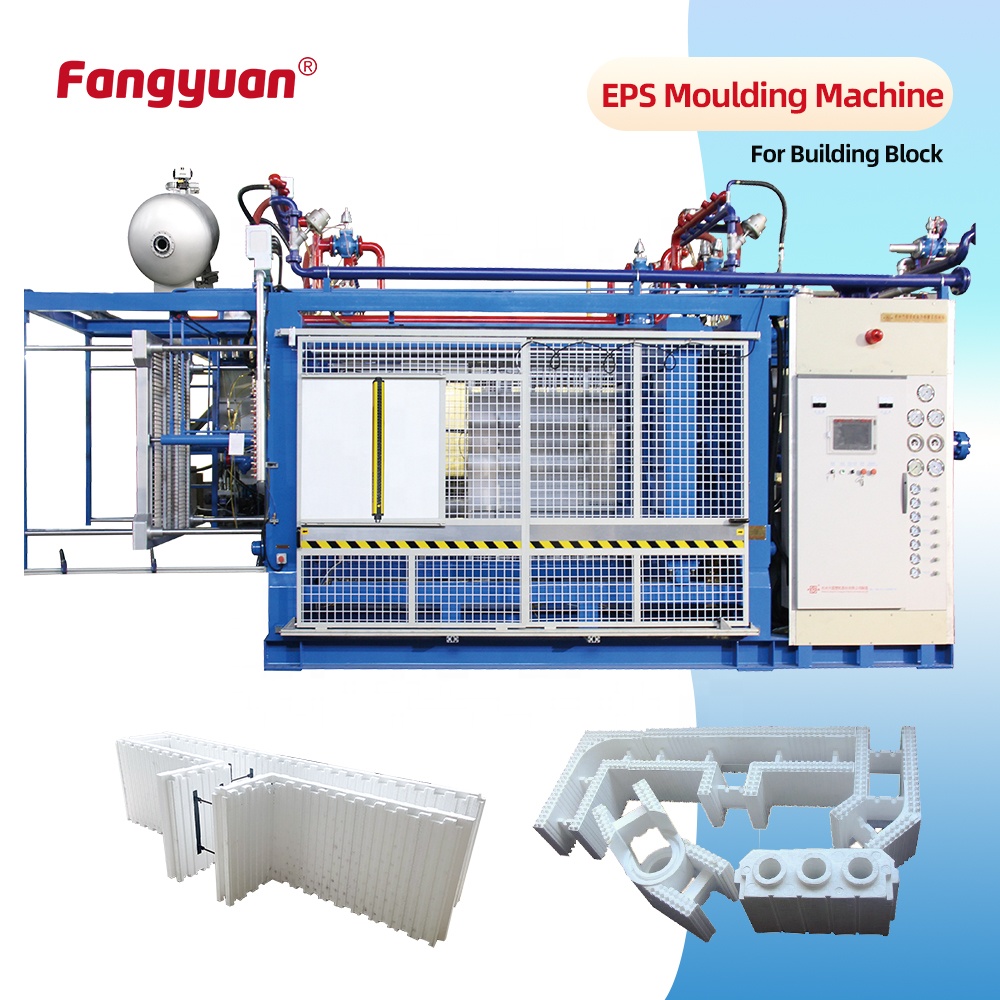

Product Overview: SPZ-140TE EPS ICF Blocks Machine

The machine has many improvements compared to the basic type shape molding machine and the features are as follows:

🏗️ 1. Machine Structure
All frames are welded onto 16/20mm steel plates with high machine legs. This greatly improves machine strength. High machine legs are made by strong "H" type profiles. It is easy for the client to install the machine (only prepare floor foundation).
📥 2. Filling System
Adopts normal pressure, vacuum for high pressurized filling. Material filling is controlled by level sensor with double rotation chamber discharge and has 44 filling outlets.
🌡️ 3. Steam System
Adopts balanced PID control valve with German gauge. This greatly improves steam accuracy and reduces consumption by around 20% compared with A/B type.
❄️ 4. Cooling System
Big vacuum pump with vertical tank, equipped with vertical vacuum cooling water spray on the top. The vacuum pump outlet has air & water separator. All these keep very high efficiency, so that vacuum cooling will be used as main cooling instead of water cooling (normally water cooling will be set up only 8-12S), which will keep the water content of product less than 10%.
💧 5. Drainage System
Increased large for inlet and outlet of mould, adopts 8-1" inlet for steam, ensuring fast cycle time, 6/8-2" outlet for drainage system, 6" big drainage pipe is controlled by butterfly valve. Together they greatly increase heating and drainage speed.
🖥️ 6. Control System
Adopts PLC (Mitsubishi) and touch screen (Schneider) making operation easy. All electronic components are from famous brands, which greatly improve the machine's stability. The air cooling, steam, de-mould, pressure of filling are controlled by long-distance balance valve.

Technical Specifications of EPS ICF Blocks Machine

Item Unit Parameters
Mould Dimension mm 1200×1400
Rear Windows Size mm 1100×1270
Product Height mm 600
Outside Dimensions (L×W×H) mm 6700×2215×5475
Weight t 8.50

Company Show Video

📹
Video Demonstration Area

Certifications

Certification 1
Certification 2

Frequently Asked Questions

❓ Are you a factory or trading company?
We are a factory with more than 37 years' experience.
❓ What is your payment term?
30% down payment against order confirmation, 70% balance payment prior shipment.
❓ What is your delivery time?
Usually in 30-60 days, depends on your projects.
❓ Can you send an engineer to our local place to instruct installation?
Yes, if you need, we will arrange an engineer for you, and we can provide turn-key job.
❓ What is the warranty policy for the machine?
One year warranty after installation is completed. During the warranty period, for broken parts not by man-made and wear parts, the factory seller will replace them free of charge. The shipping cost will be borne by the buyer, and the seller will equip standard spare wear parts to the buyer.
❓ What are the installation requirements for the SPZ-140TE machine structure?
The machine features high legs made of a strong "H" type profile, making it very easy to install. The client only needs to prepare the basic floor foundation for setup.
