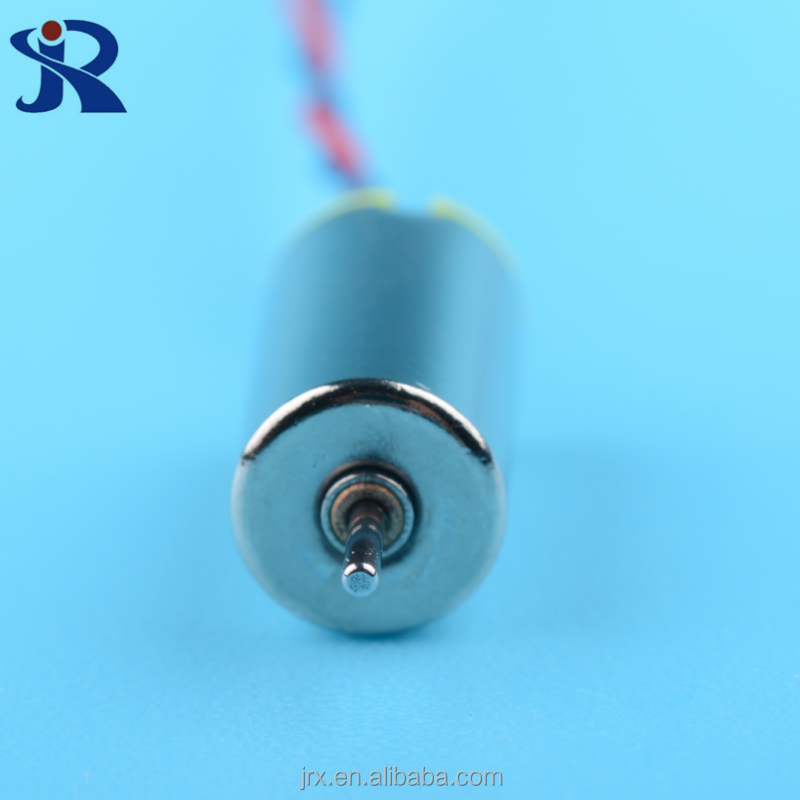

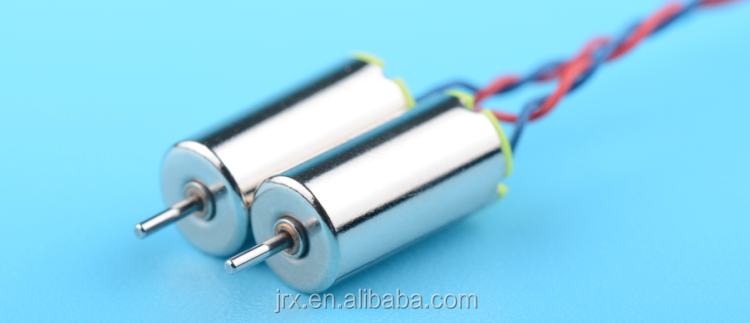

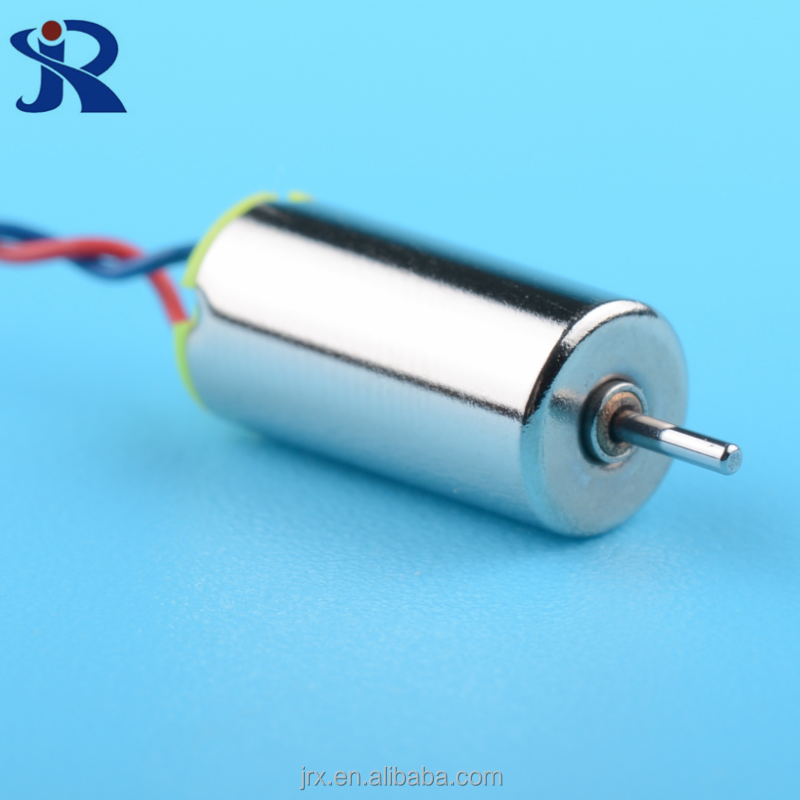

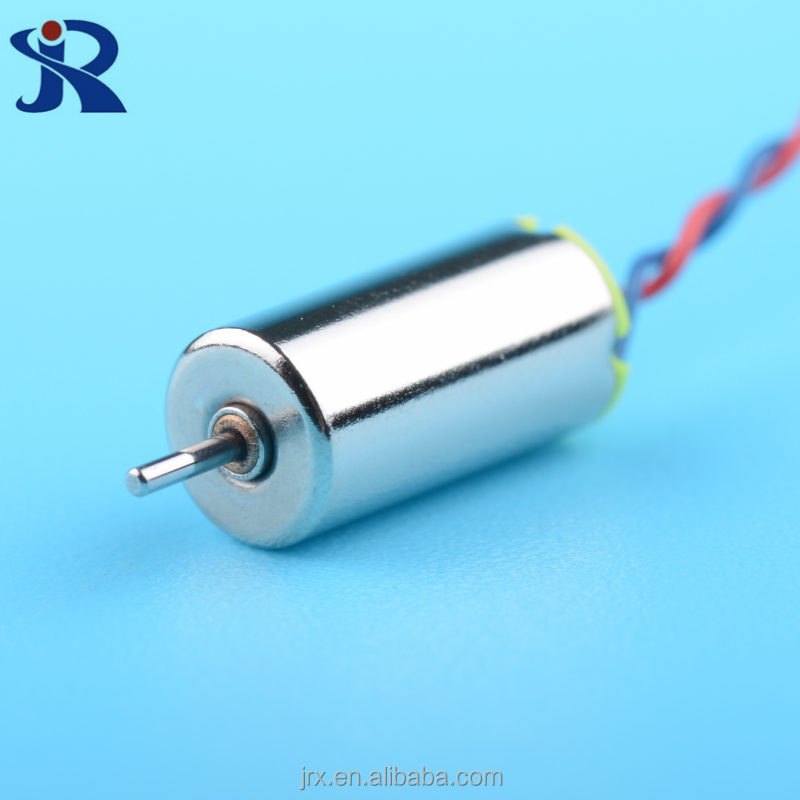

The premium quality 3.7V DC Micro Motor (JMM1401) is designed for high performance and is widely utilized in a variety of industries and applications, including:

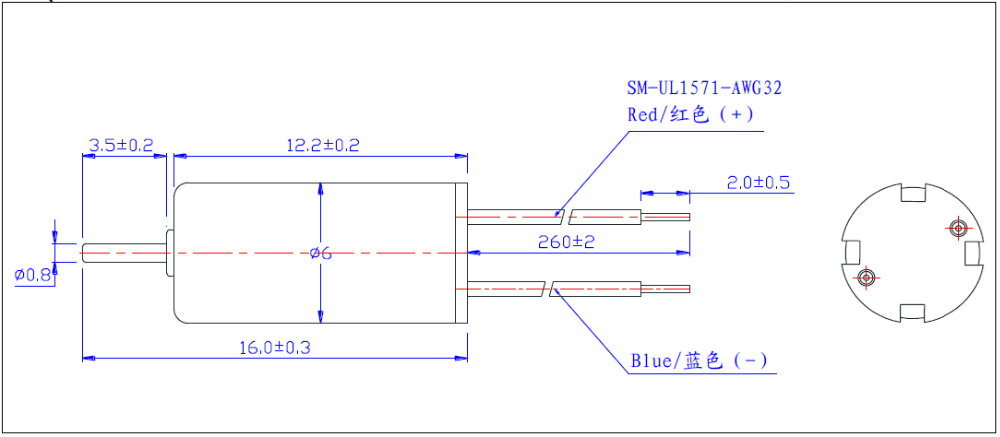

Detailed measurements and electrical parameters for the JMM1401 3.7V DC Micro Motor.
| Specification Category | Unit | Value Details | |
|---|---|---|---|
| Model Size | Shaft diameter | mm | 0.8 |
| Motor diameter | mm | 6.0 | |
| Body length | mm | 12.0 | |
| Main Performance | Rated voltage | V | 3.7V |
| Speed (max. & min.) | r/min | 51000 ± 2000 | |
| Rated current | mA | 50 | |
| Customisable Parts | Shaft length / Diameter | mm | 0.8 (Customisable) |
| Wire length / Colour | mm | Red, Black, White (Customisable) | |
| Rotation | - | CW / CCW | |

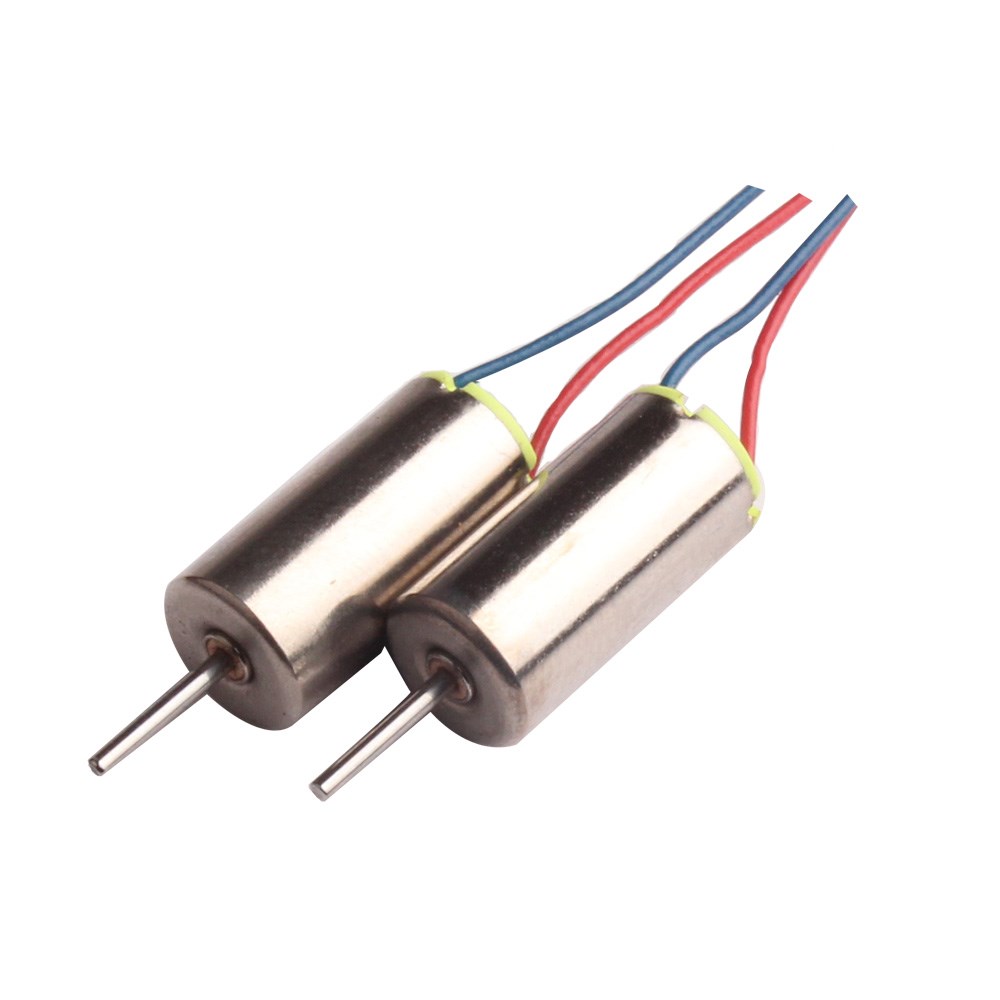

Name: 3.7V 612 Motor

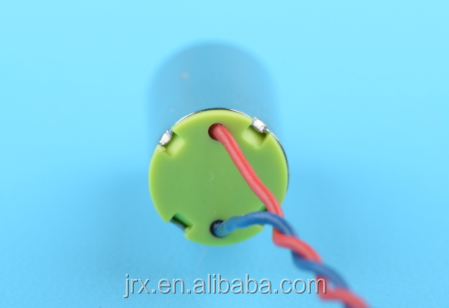

Direction of rotation: CW/CCW
Wire Colour: Red and Blue

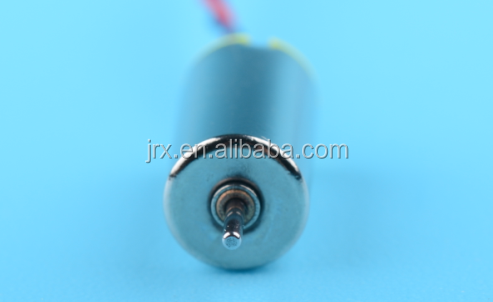

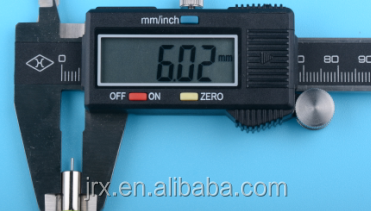

Diameter: 6mm

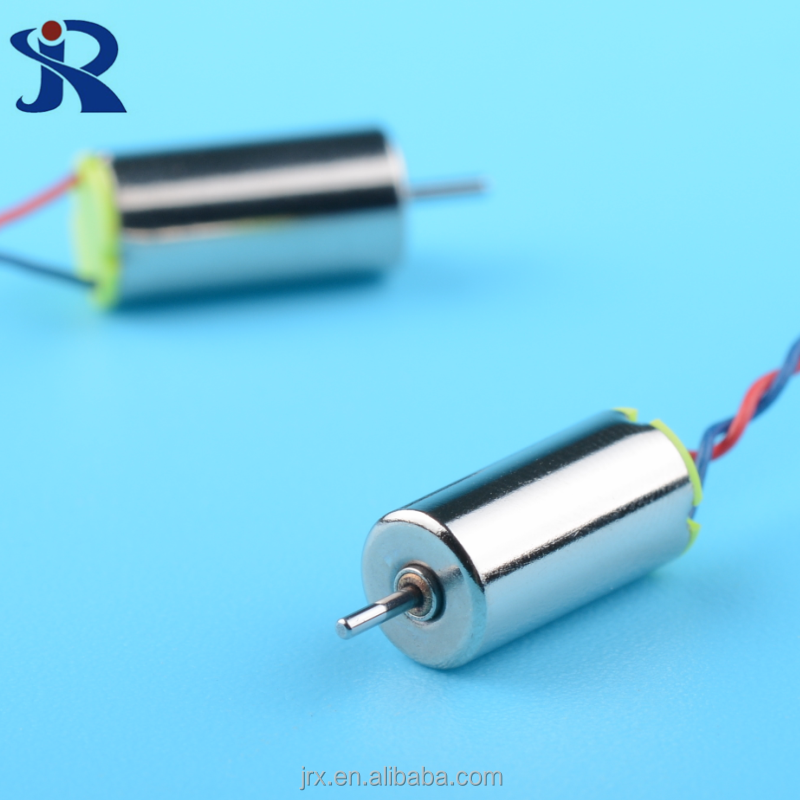

Designed as a high-efficiency drive motor suitable for Quadrocopters and RC Helicopters, offering strong driving force, low consumption, and high speed.
Name: 3.7V 612 Motor

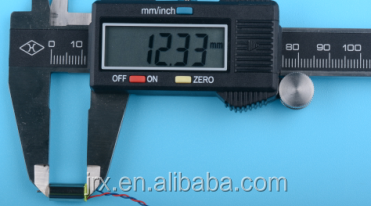

Housing Length: 12mm
Specifically engineered to deliver high performance in compact environments, guaranteeing maximum efficiency and rotational stability.
| Size | 175(L) * 95(W) * 75(H) mm |
| Weight | 0.5 KG |
| Details | Foam box inner package with plastic bag cover, or packed as per request. |

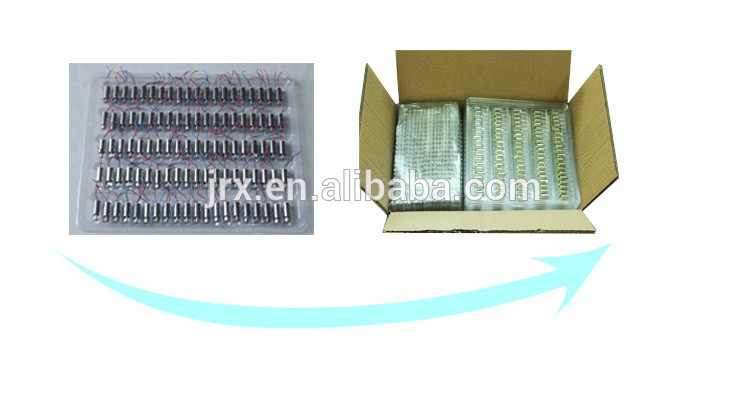

| Size | 510(L) * 300(W) * 300(H) mm |
| Weight | 9.5 KG |
| Details | Carton box utilizing inner plastic trays (205L * 165W * 5H mm), or custom requests. |
